Trigonometric functions are commonly defined as ratios of two sides of a right-angled triangle for a given angle.

The sine of an angle (sin(θ°)) is the y-coordinate of point P on the triangle formed inside the unit circle.

The cosine of an angle (cos(θ°)) is the x-coordinate of point P on the triangle formed inside the unit circle.

The tangent of an angle (tan(θ°)) is the y-coordinate of point Q on the triangle which extends from the unit circle.

Advanced problem solving with right-angled trigonometry

Maths

Checking and further securing understanding of Pythagoras' theorem

Using Pythagoras' theorem to justify a right-angled triangle

Calculating the length of a line segment

Checking and securing understanding of the unit circle

Checking and securing understanding of sine ratio problems

Checking and securing understanding of cosine problems

Checking and securing understanding of tangent ratio problems

Calculate trigonometric ratios for 30° and 60°

Calculate trigonometric ratios for 0°, 45° and 90°

Applying trigonometric ratios in context

Applying Pythagoras' theorem in 3D

Applying trigonometric ratios in 3D

In this unit, pupils have explored the trigonometric ratios for right-angled triangles in a variety of situations. In the future unit, pupils explore what can be done when we have a triangle that is not right-angled.

In the prior unit, pupils were introduced to the trigonometric ratios and developed the skills to ascertain which ratio would be appropriate for a given problem. In this unit, pupils are introduced to a variety of situations where this knowledge is required, such as 3-D problems and elevation/depression.

In this unit, pupils are introduced to a variety of situations where trigonometric ratios are required, such as 3-D problems and problems of elevation or depression.

Right-angled trigonometry

ABCD is a square on a grid, where each square is 1 unit. Work out the length of BC, to 1 decimal place.

The exact area of the square ABCD is {{}} square units.

Work out the length of CD correct to 1 decimal place.

Work out the perpendicular height of this isosceles triangle, to 1 decimal place.

Given that FE = 12 cm, EH = 19 cm and angle DHE = $$40^\circ$$, calculate the volume of the cuboid ABCDEFGH, to the nearest integer.

$$=(18\sin(28^\circ))^2\times\pi\times18\cos(28^\circ)$$

Match the parts of the cylinder to the correct calculation/answer.

Work out the length of the hypotenuse, to 1 decimal place.

Work out the length of the missing side of this right-angled triangle, to 1 decimal place.

Work out the length of the line segment AB, where A(-2, -6) and B(1, -10).

Work out the size of the angle, $$x$$, to 1 decimal place.

Work out the length of the edge marked $$x$$ to 1 decimal place.

Starter Quiz

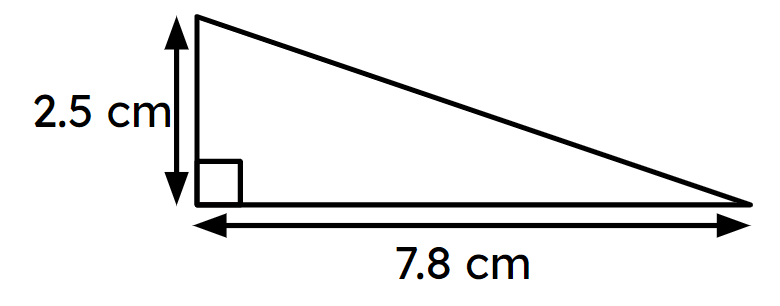

Work out the length of the hypotenuse, to 1 decimal place.
