Length of a wire
I can explain why longer wires have a higher resistance than shorter wires.
Length of a wire
I can explain why longer wires have a higher resistance than shorter wires.
These resources will be removed by end of Summer Term 2025.
Switch to our new teaching resources now - designed by teachers and leading subject experts, and tested in classrooms.
These resources were created for remote use during the pandemic and are not designed for classroom teaching.
Lesson details
Key learning points
- The longer a wire, the greater its resistance.
- Electric current in a wire is a flow of electrons moving through the spaces between ‘atoms’ (metal ions).
- Doubling the length of a wire doubles its resistance.
- Doubling the length of a wire doubles the number of ‘atoms’ (metal ions) in the way of the flow of electrons.
- The resistance of a (uniform) wire is proportional to its length.
Keywords
Resistance - Resistance is a measure of how hard it is for current to flow.
Metal ion - A metal ion is formed when a metal atom loses one or more electrons and has a positive charge.
Electron - Electrons are the charges in conductors that flow to give an electric current.
Proportional - Two variables are proportional if one changes as a multiple of the other.
Common misconception
Many pupils are likely to still use the terms current, voltage and resistance interchangeably.
Repeatedly question pupils about each term and challenge them to use each one correctly throughout their explanations, both written and verbal.
To help you plan your year 9 science lesson on: Length of a wire, download all teaching resources for free and adapt to suit your pupils' needs...
To help you plan your year 9 science lesson on: Length of a wire, download all teaching resources for free and adapt to suit your pupils' needs.
The starter quiz will activate and check your pupils' prior knowledge, with versions available both with and without answers in PDF format.
We use learning cycles to break down learning into key concepts or ideas linked to the learning outcome. Each learning cycle features explanations with checks for understanding and practice tasks with feedback. All of this is found in our slide decks, ready for you to download and edit. The practice tasks are also available as printable worksheets and some lessons have additional materials with extra material you might need for teaching the lesson.
The assessment exit quiz will test your pupils' understanding of the key learning points.
Our video is a tool for planning, showing how other teachers might teach the lesson, offering helpful tips, modelled explanations and inspiration for your own delivery in the classroom. Plus, you can set it as homework or revision for pupils and keep their learning on track by sharing an online pupil version of this lesson.
Explore more key stage 3 science lessons from the Resistance and parallel circuits unit, dive into the full secondary science curriculum, or learn more about lesson planning.
Equipment
Constantan, or nichrome wire, SWG 30-40, metre rules, crocodile clips, electrical leads, ammeters capable of measuring current in milliamps, 3V batteries, wire cutters.
Content guidance
- Risk assessment required - equipment
Supervision
Adult supervision required
Licence
Lesson video
Loading...
Prior knowledge starter quiz
6 Questions
Q1.Which of the following particles are the moving charges in a metal?
Q2.Which of the following statements explain what happens if a bare copper wire is folded in half and doubled back on itself?
Q3.Which of the following statements explain what we mean when we say two variables are proportional?

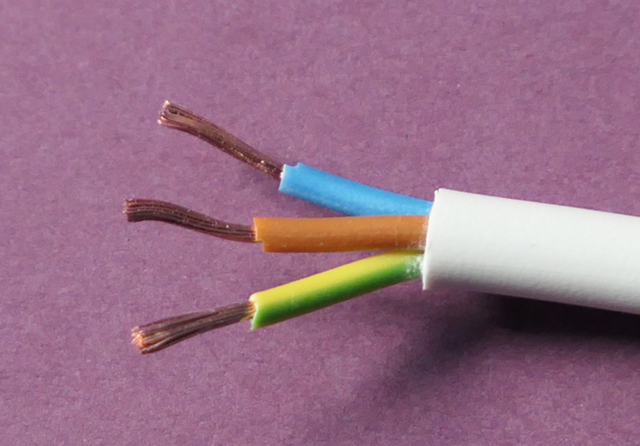

Q4.Which of the following statements describe the role of the plastic insulation around the copper wires in the cable shown?

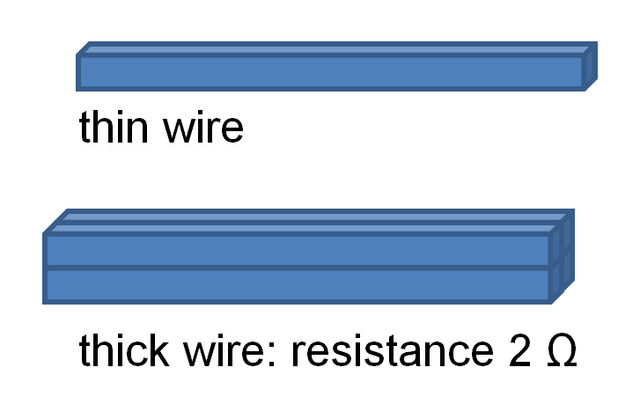

Q5.The two wires shown are made from the same material.
Which of the following resistances is the resistance of the thin wire?
Q6.A wire with a cross–sectional area of 1 mm$$^2$$ allows a current of 0.2 A to flow through it.
What current will flow in a wire of the same material with a cross–sectional area of 4 mm$$^2$$?
Assessment exit quiz
6 Questions
Q1.Which of the following statements describes the cause of resistance in metal wires?
Q2.The image shown is a representation of the arrangment of the particles in a metal.
Which of the following particles do the black spheres represent?
Q3.A metal wire has a resistance of 6 $$\Omega$$.
Which of the following resistances is the new resistance of the wire if its length is increased by three times?
Q4.Which of the following resistances is the total resistance of the combination of resistors shown?
Q5.A current of 0.4 A flows through a resistance cable which is 12 m long.
What current will flow through 3 m of the same resistance cable?
Q6.The cross–sectional area of a wire is doubled and the length is halved.
Which of the following statements describes what will happen to the resistance of the wire?
