Volume of a frustum of a cone
I can calculate the volume of a frustum of a cone.
- Year 11
- Higher
Volume of a frustum of a cone
I can calculate the volume of a frustum of a cone.
These resources will be removed by end of Summer Term 2025.
Switch to our new teaching resources now - designed by teachers and leading subject experts, and tested in classrooms.
These resources were created for remote use during the pandemic and are not designed for classroom teaching.
Lesson details
Key learning points
- The frustum of a cone can be thought of as a cone with the top missing.
- The volume of a frustum of a cone can be thought of as the difference between two cones' volumes.
- This formula can be manipulated to rely on information from the frustum only.
Keywords
Frustum - A frustum is the 3D shape made from a cone by making a cut parallel to its circular base and removing the resultant smaller cone.
Volume - Volume is the amount of space occupied by a closed 3D shape.
Common misconception
Pupils may think that if you cut the height of the cone in a half, the resulting frustrum will have half the volume of the original cone.
The frustrum is actually seven eighths of the volume of the original cone; the small cone that was removed to create the frustrum is one eighth the volume of the original cone if the frustrum and the small cone have the same height.
To help you plan your year 11 maths lesson on: Volume of a frustum of a cone, download all teaching resources for free and adapt to suit your pupils' needs...
To help you plan your year 11 maths lesson on: Volume of a frustum of a cone, download all teaching resources for free and adapt to suit your pupils' needs.
The starter quiz will activate and check your pupils' prior knowledge, with versions available both with and without answers in PDF format.
We use learning cycles to break down learning into key concepts or ideas linked to the learning outcome. Each learning cycle features explanations with checks for understanding and practice tasks with feedback. All of this is found in our slide decks, ready for you to download and edit. The practice tasks are also available as printable worksheets and some lessons have additional materials with extra material you might need for teaching the lesson.
The assessment exit quiz will test your pupils' understanding of the key learning points.
Our video is a tool for planning, showing how other teachers might teach the lesson, offering helpful tips, modelled explanations and inspiration for your own delivery in the classroom. Plus, you can set it as homework or revision for pupils and keep their learning on track by sharing an online pupil version of this lesson.
Explore more key stage 4 maths lessons from the 2D and 3D shape: surface area and volume (pyramids, spheres and cones) unit, dive into the full secondary maths curriculum, or learn more about lesson planning.
Licence
Lesson video
Loading...
Prior knowledge starter quiz
6 Questions
Q1.A solid can be decomposed to make the volume easier to calculate.
Q2.The diagram shows a composite solid constructed from two congruent cuboids. All lengths given are in centimetres. Which of these calculations give the total volume of the solid?

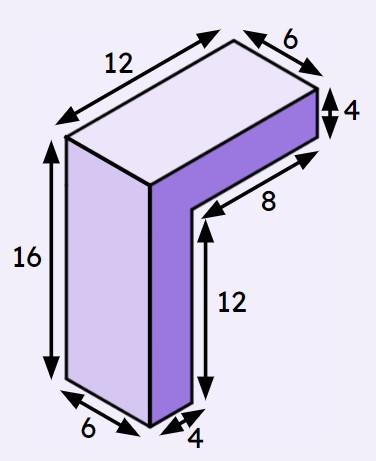

Q3.This composite solid is constructed from two cuboids. All lengths given are in metres. The total volume of the solid is m³.

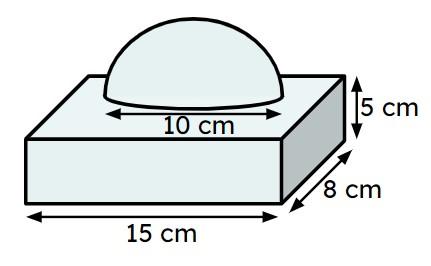

Q4.This composite solid is constructed by placing a hemisphere with diameter 10 cm on top of a cuboid. Find the volume of the solid. Give your answer to the nearest cubic centimetre.

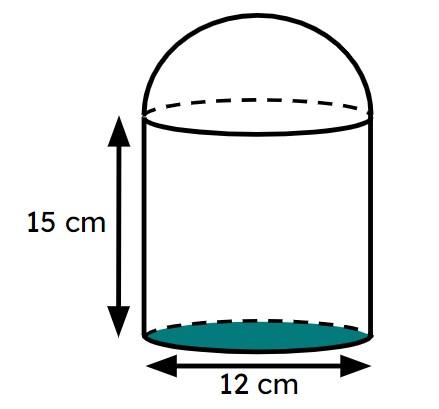

Q5.This composite solid is constructed with a cylinder and a hemisphere. Each have a diameter of 12 cm. The volume of the solid is cm³ (correct to 4 significant figures).

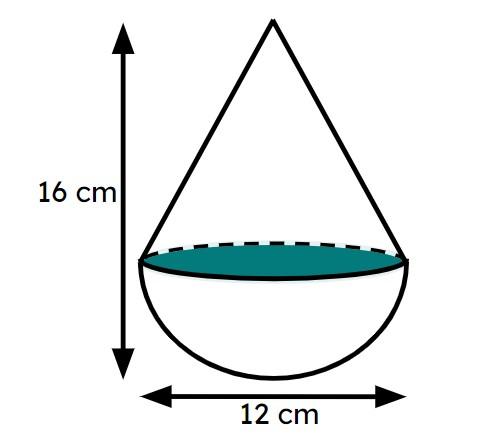

Q6.This composite solid is constructed with a cone and a hemisphere. The volume of the solid, in terms of 𝜋, is 𝜋 cm³.
Assessment exit quiz
6 Questions
Q1.A is the 3D shape made from a cone by making a cut parallel to its circular base and removing the resultant smaller cone.

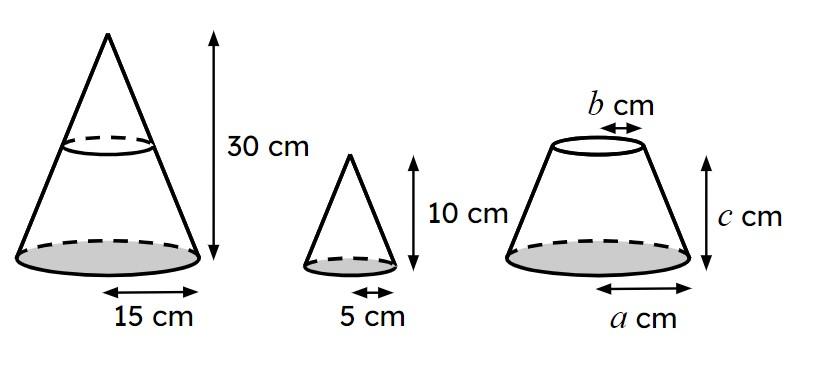

Q2.The left-hand cone is split into a smaller cone and a frustum. Match each length labelled a - c to its value.
15 cm
5 cm
20 cm

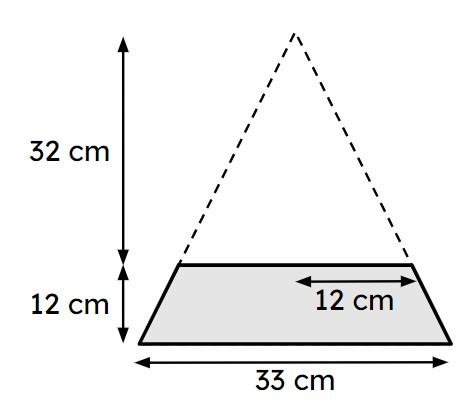

Q3.The diagram shows a side elevation of a frustum. Find the volume of the large cone that the frustum is cut from. Give your answer correct to 3 significant figures.
Q4.The diagram shows a side elevation of a frustum. Find the volume of the frustum. Give your answer correct to 3 significant figures.

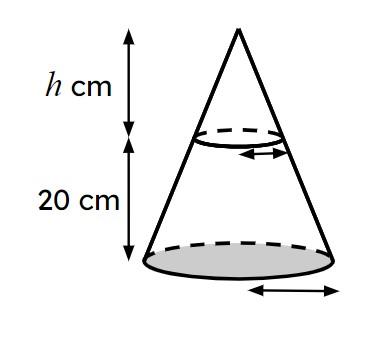

Q5.A cone is cut into a frustum of height 20 cm and a small cone. The radius of the base of the frustum is 15 cm and the radius of its top is 9 cm. The height of the small cone is cm.
Q6.A cone is cut into a frustum of height 20 cm and a small cone. The radius of the base of the frustum is 15 cm and the radius of its top is 9 cm. The volume of the frustum is 𝜋 cm
