Frequency trees

I can draw and use a frequency tree to calculate probabilities.

Download all resources

Share activities with pupils

View unit

Lesson 4 of 18

New

Year 11
Higher

Frequency trees

I can draw and use a frequency tree to calculate probabilities.

Download all resources

Share activities with pupils

These resources will be removed by end of Summer Term 2025.

Switch to our new teaching resources now - designed by teachers and leading subject experts, and tested in classrooms.

These resources were created for remote use during the pandemic and are not designed for classroom teaching.

View new resources

Lesson slides

Download lesson slides

Skip lesson slides

Lesson details

Key learning points

There are key differences between frequency trees and probability trees
Frequency trees are constructed using frequencies
Frequency trees display information on how often an outcome happened within a set number of trials

Keywords

Frequency - The frequency is the number of times an event occurs; or the number of individuals (people, animals etc.) with some specific property.
Tree diagram - Tree diagrams are a representation used to model statistical/probability questions. Branches represent different possible events or outcomes.
Probability - The probability that an event will occur is the proportion of times the event is expected to happen in a suitably large experiment.

Common misconception

Pupils may be tempted to always use the total frequency from a tree as the denominator of any fraction.

The denominator of the fraction should be the total frequency of the group that is being selected from. This could be the total population or it could be a subgroup of the population.

To help you plan your year 11 maths lesson on: Frequency trees, download all teaching resources for free and adapt to suit your pupils' needs...

Aspects of the lesson can be made practical by asking pupils to collect data themselves that could then be organised into a frequency tree. They can then calculate probabilities from their own data.

Teacher tip

Licence

This content is © Oak National Academy Limited (2025), licensed on Open Government Licence version 3.0 except where otherwise stated. See Oak's terms & conditions (Collection 2).

Lesson video

Skip lesson video

Worksheet

Download worksheet

Skip worksheet

Prior knowledge starter quiz

Download quiz pdf

6 Questions

Q1.

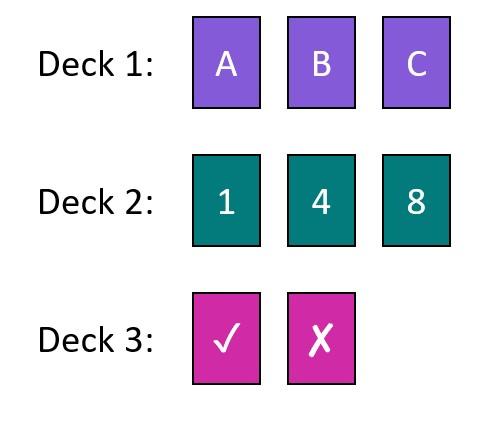

Here are three decks of cards. A single card from each of Deck 1, Deck 2, and Deck 3 is drawn to make a trio. What is the probability that this trio of cards contains an even number?

$$\frac{2}{7}$$

Correct answer: $$\frac{12}{18}$$

$$\frac{15}{18}$$

Correct answer: $$\frac{2}{3}$$

$$\frac{5}{6}$$

Q2.
Sam plays a video game that can either be won or lost. The probability that Sam wins the video game is $$8\over15$$. What is the probability that Sam loses the video game?

$$4\over15$$

Correct answer: $$7\over15$$

$$8\over15$$

$$1\over2$$

$$1\over3$$

Q3.

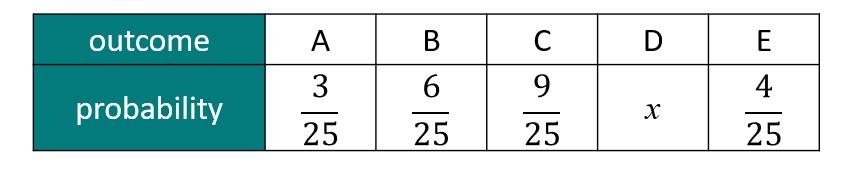

This table shows the mutually exclusive and exhaustive set of outcomes, and the probability of each outcome, from spinning a spinner once. Find the value of $$x$$.

$$\frac{1}{25}$$

Correct answer: $$\frac{3}{25}$$

$$\frac{6}{25}$$

$$\frac{9}{25}$$

$$\frac{22}{25}$$

Q4.

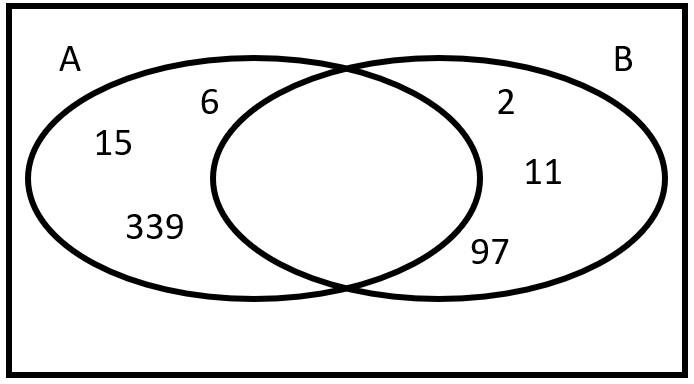

Each card in a deck of 7 cards has a unique integer on it. The Venn diagram shows events A = {multiples of 3} & B = {prime numbers}. A and B are not mutually exclusive. Find the number on the 7th card

Correct Answer: 3, three

Q5.

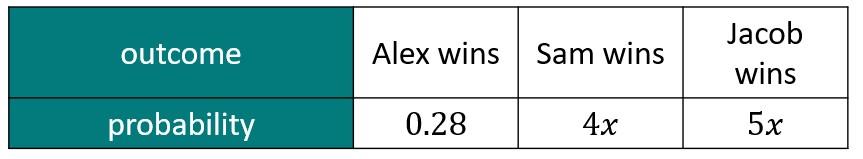

A game can be won by either Alex, Sam, or Jacob. By constructing and solving an algebraic equation, find P(Sam wins).

0.08

Correct answer: 0.32

0.4

0.48

0.72

Q6.
A spinner with outcomes {A, B, C, D} is spun once. P(A) = 0.15. P(B) = $$x$$. P(C) is three times as likely as P(B). P(D) is equally likely as P(A or C). P(B) = . Give your answer as a decimal.

Correct Answer: 0.1

Assessment exit quiz

Download quiz pdf

6 Questions

Q1.

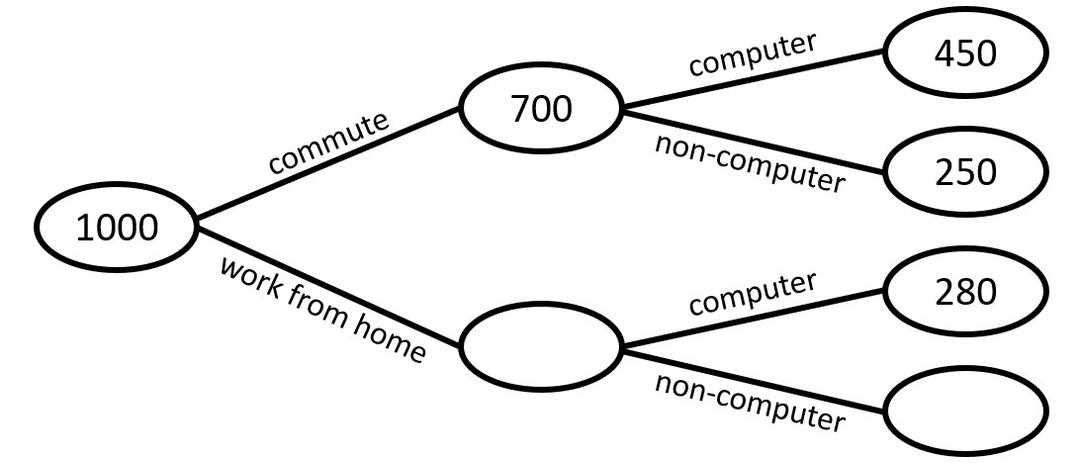

1000 people were surveyed to see if they either commute to work, or work from home, and whether they use a computer or not. How many people work from home but don’t use a computer?

Correct Answer: 20

Q2.
1000 people were surveyed to see if they either commute to work, or work from home, and whether they use a computer or not. What fraction of people who work from home use a computer?

$$\frac{300}{1000}$$

$$\frac{280}{1000}$$

$$\frac{20}{280}$$

Correct answer: $$\frac{280}{300}$$

$$\frac{20}{300}$$

Q3.
1000 people were surveyed to see if they either commute to work, or work from home, and whether they use a computer or not. What fraction of people who use a computer work from home?

$$\frac{280}{1000}$$

Correct answer: $$\frac{280}{730}$$

$$\frac{280}{300}$$

$$\frac{450}{730}$$

$$\frac{20}{270}$$

Q4.

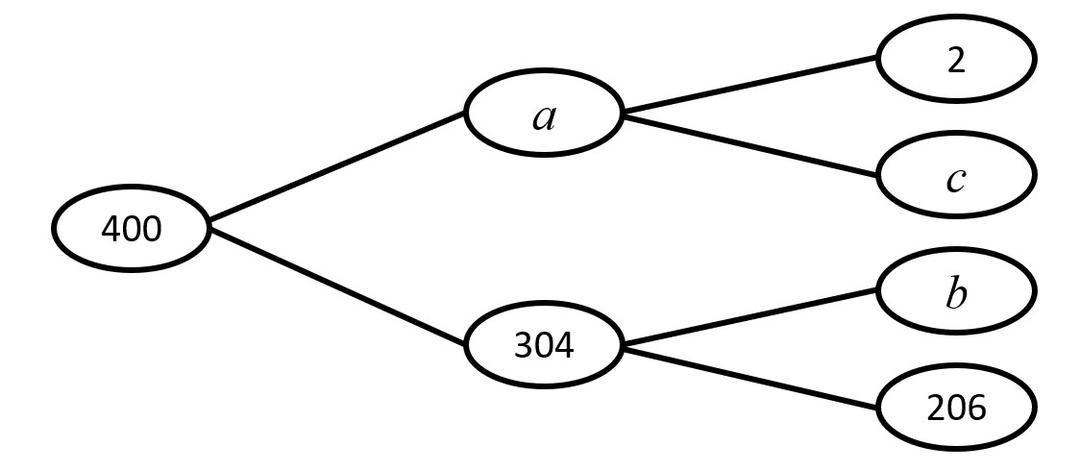

Match each frequency from the frequency tree to its value.

Correct Answer:$$a$$,96

Correct Answer:$$b$$,98

Correct Answer:$$c$$,94

Correct Answer:total frequency,400

400

Q5.

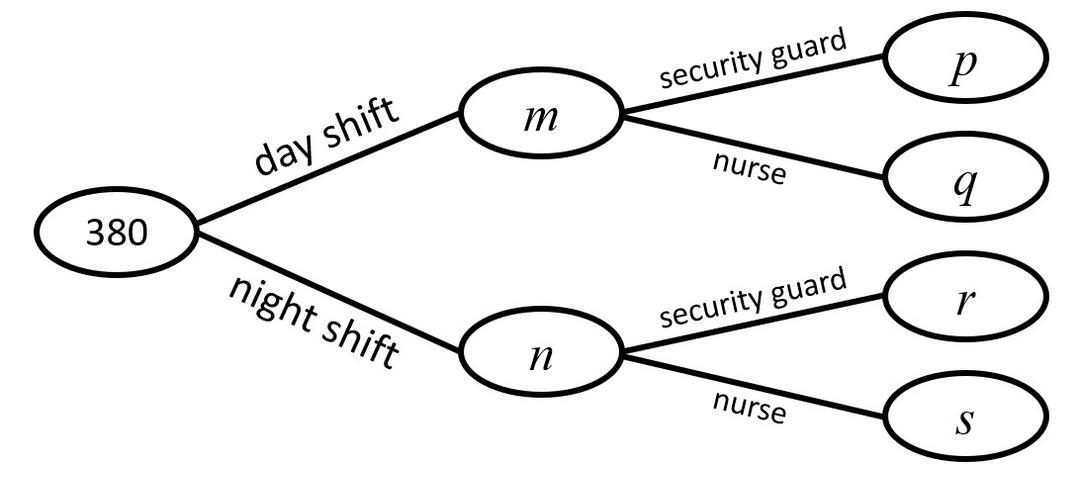

Of the 180 people who are day shift workers, 30 are security guards. There are a total of 70 security guards. Match each frequency from the frequency tree to its value.

Correct Answer:$$n$$,200

200

Correct Answer:$$p$$,30

Correct Answer:$$q$$,150

150

Correct Answer:$$r$$,40

Correct Answer:$$s$$,160

160

Q6.

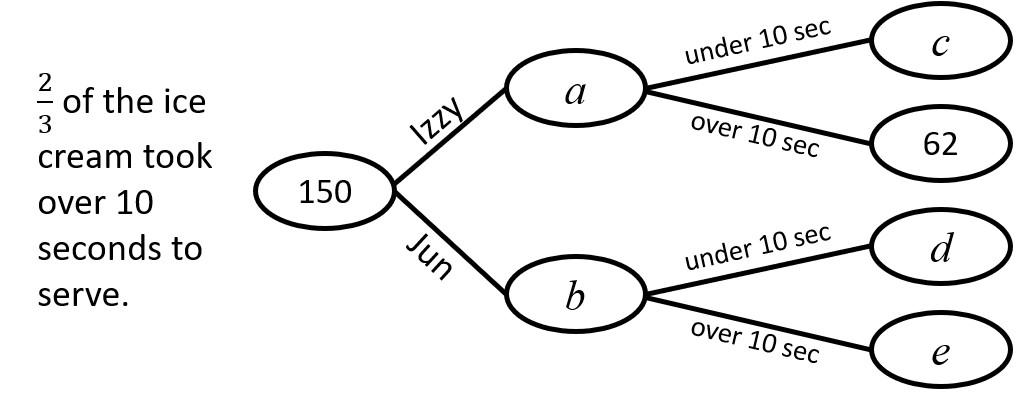

Jun and Izzy raised money for charity by selling ice cream. Izzy sold 60% of the ice cream, whilst Jun sold the rest. Match each frequency from the frequency tree to its value.

Correct Answer:$$a$$,90

Correct Answer:$$b$$,60

Correct Answer:$$c$$,28

Correct Answer:$$d$$,22

Correct Answer:$$e$$,38
