Lesson details

Key learning points

  1. Streamlining reduces drag.
  2. Streamlining reduces how much a fluid needs to be pushed out of the way for an object to move through it.
  3. The drag force on an object moving through a fluid (liquid or gas) increases with speed.
  4. Streamlining can increase the top speed of a vehicle.

Keywords

  • Drag - When an object moves through a liquid or a gas (a fluid), a drag force acts on it as it pushes particles out of its way.

  • Air resistance - The drag force on an object moving through air is called air resistance.

  • Streamlined - A streamlined object is shaped to reduce the drag forces acting on it.

  • Water resistance - The drag force on an object moving through water is called water resistance.

Common misconception

Pupils often do not recognise the existence of a drag force on an object moving through air.

Demonstrate the effect of drag forces by dropping pieces or paper (folded and unfolded) and show they reach the ground at different times.

A vacuum pump connected to a sturdy glass tube tube with a feather inside can be used to demonstrate falling without an atmosphere.
Teacher tip

Content guidance

  • Risk assessment required - equipment

Supervision

Adult supervision required

Licence

This content is © Oak National Academy Limited (2024), licensed on Open Government Licence version 3.0 except where otherwise stated. See Oak's terms & conditions (Collection 2).

Lesson video

Skip lesson video

Loading...

Starter quiz

Download starter quiz

6 Questions

Q1.
Which of these is used to mean the overall effect of a combination of forces, taking their direction into account?
the ultimate force
the final force
the total force
Correct answer: the resultant force
the force sum
Q2.
Air resistance is an example of what kind of force?
tension
gravitational
upthrust
Correct answer: drag
non-contact
Q3.
When a resultant force acts on an object it can speed up or slow down. What word is used to describe an increase in speed?
Correct Answer: acceleration, accelerate, an acceleration, accelerates
Q4.

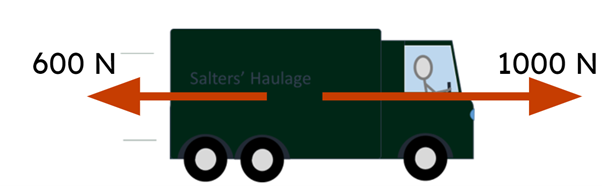

The figure shows the forces on a van. What is happening to the van?
An image in a quiz
It must be stationary.
Correct answer: It is speeding up.
It is slowing down.
It is moving backwards.
It is moving at a constant speed.
Q5.

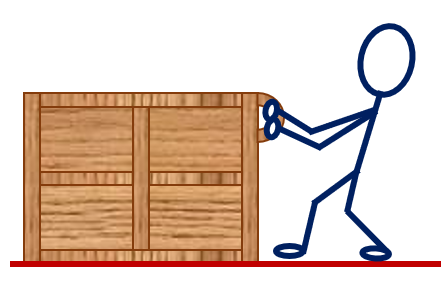

A person pulls on a stationary box. It starts moving towards them. Which statement is correct.
An image in a quiz
The size of the pull must be greater than the weight of the box.
The size of the pull must be less than the weight of the box.
Correct answer: The size of the pull is greater than the friction between the box and the floor.
The size of the pull is less than the friction between the box and the floor.
Q6.
Which of these are parts of Newton's first law of motion? When there is no resultant force ...
a stationary object will start to move.
Correct answer: a stationary object will stay stationary.
a moving object will slow down.
a moving object will change direction.
Correct answer: a moving object keeps moving at the same speed in the same direction.
Q4 UYSEG Q5 UYSEG

Exit quiz

Download exit quiz

6 Questions

Q1.
Match the key words with the explanations.
Correct Answer:Drag,The force that acts when an object moves through a fluid.

The force that acts when an object moves through a fluid.

Correct Answer:Air resistance,The drag force in air.

The drag force in air.

Correct Answer:Water resistance,The drag force in water.

The drag force in water.

Correct Answer:Streamlined,Shaped so that it moves through liquids/gases more easily.

Shaped so that it moves through liquids/gases more easily.

Q2.

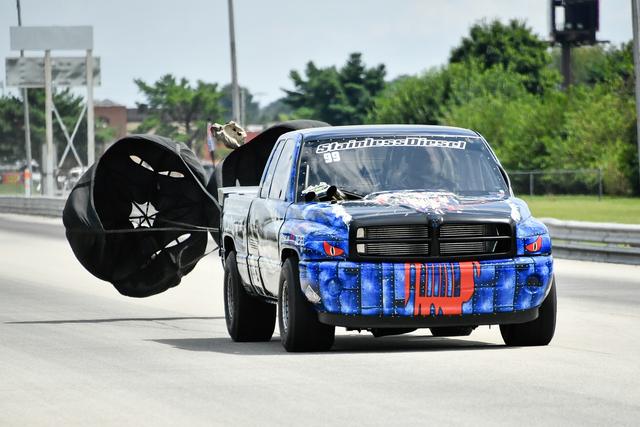

A car is travelling at high speed and opens a parachute. Which force increases when the parachute is opened?
An image in a quiz
Correct Answer: drag, the drag, air resistance, the air resistance, the drag force
Q3.

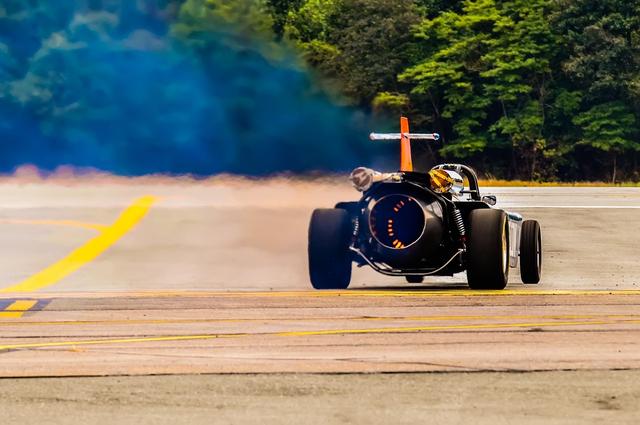

Which features of a rocket-propelled car will allow it to reach a very high speed?
An image in a quiz
it creates high air resistance
Correct answer: it is streamlined
it produces a large drag force
Correct answer: it produces a large thrust force
Q4.

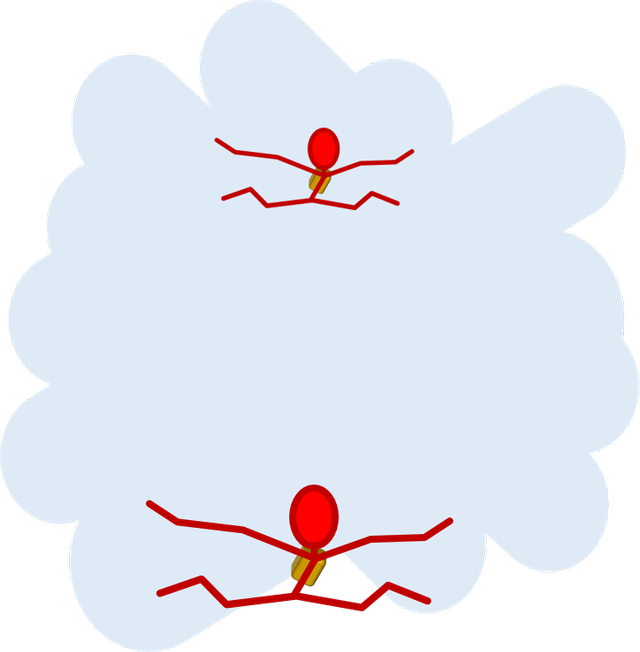

A sky diver jumps out of an aeroplane and speeds up until they reach a top speed. Which statements are true?
An image in a quiz
The weight of the skydiver has reached zero.
The drag of the skydiver has reached zero.
Correct answer: There is no vertical resultant force.
Correct answer: The weight of the skydiver is equal in size to drag force.
There are no vertical forces acting on the skydiver.
Q5.
Four identical marbles are dropped from the same height into containers of different fluids. Starting with the shortest time, put them into order of how long it takes them to reach the bottom.
An image in a quiz
1 - Marble falling through air.
2 - Marble falling through water.
3 - Marble falling through cooking oil.
4 - Marble falling through honey.
Q6.
Which of these statements explains why streamlining can increase the maximum speed of a lorry.
Streamlining will reduce the mass of the lorry.
Streamlining increases the maximum driving force of the lorry.
Correct answer: A streamlined lorry will push fewer air particles out of the way per second.
A streamlined lorry will fit between air particles and avoid hitting them.
Correct answer: The drag force on the lorry will be less when it is streamlined.
Q4 UYSEG Q5 uyseg
