Lesson details
Key learning points
- In this lesson, we will be able to use triangles to deduce the sum of the interior angles in a quadrilateral. We will also be able to find unknown angles in quadrilaterals.
Licence
This content is made available by Oak National Academy Limited and its partners and licensed under Oak’s terms & conditions (Collection 1), except where otherwise stated.
Loading...
6 Questions
Q1.
Decide if the following statement is always, sometimes or never true: The diagonals of a quadrilateral intersect.
Always true
Never true
Q2.
Decide if the following statement is always, sometimes or never true: The diagonals of a rhombus are perpendicular.
Never
Sometimes
Q3.
Decide if the following statement is always, sometimes or never true: The diagonals of a trapezium are perpendicular.
Always
Never
Q4.
Decide if the following statement is always, sometimes or never true: The diagonals of a quadrilateral are the same length
Always
Never
Q5.

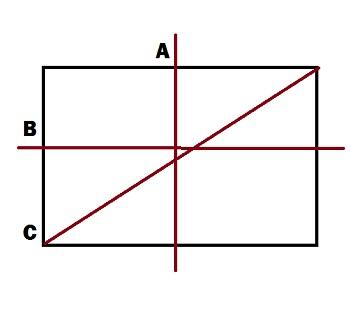

Which line (A, B or C) is a diagonal of this shape?
A
B
They are all diagonals of the rectangle
Q6.

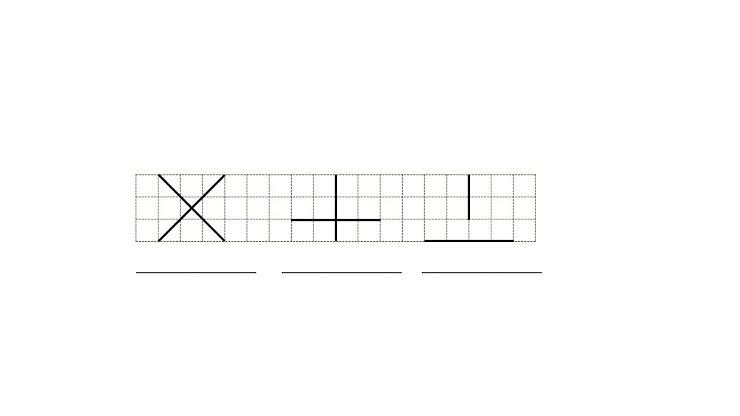

The diagonals of a three quadrilaterals are shown, draw and name the shapes.
Isosceles trapezium, Kite, Rhombus
Parallelogram, Kite, Delta
Rhombus, Rectangle, Delta
6 Questions
Q1.

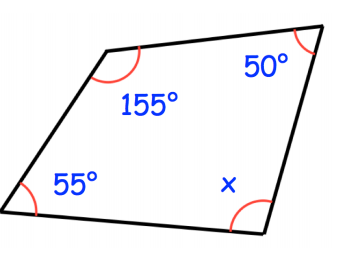

Find the size of the missing angle.
155 degrees
260 degrees
Q2.

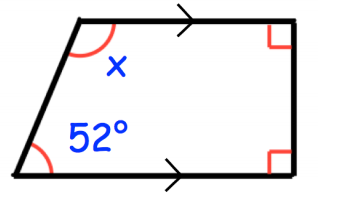

Calculate the missing angle, labelled x
180 degrees
90 degrees
Q3.

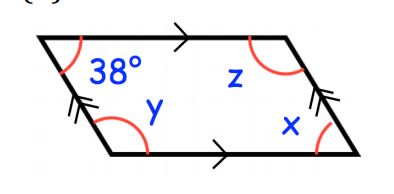

Find the missing angles, x, y and z
x = 38, y = 142, z = 38
x = 38, y = 52, z = 142
Q4.

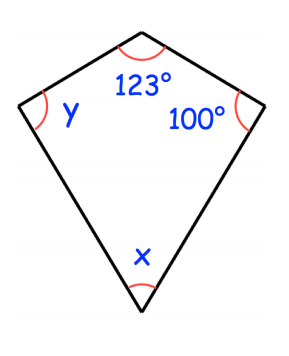

Find the size of the missing angles.
x = 123, y = 100
x = 68.5, y = 68.5
Q5.

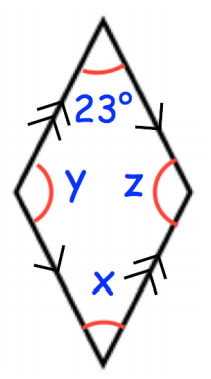

Shown below is a rhombus. Calculate each of the missing angles
They are all diagonals of the rectangle
x = 11.5, y = 141.5, z = 141.5
x = 23, y = 314, z = 314
Q6.

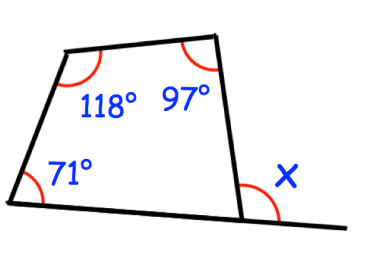

Find the size of the missing angle.
180 degrees
74 degrees
