Drawing the solid from the plan and elevations
Lesson details
Learning outcome
I can draw the solid from the plan and elevations.
Key learning points
- A solid can be built from its plan and elevations.
- All three pieces of information are needed to construct the solid.
- The plan and elevations do not tell you what is going on inside the solid.
Keywords
Plan - The plan of a solid is the view of it from above.
Front elevation - The front elevation of a solid is the view of it from the front.
Side elevation - The side elevation of a solid is the view of it from the side.
Isometric paper - Isometric means distances between points stay the same. In this lesson you may use isometric paper which has equally spaced dots or points.
Common misconception
The plan and elevations show every aspect of a solid.
The plan and elevations do not show the features inside a solid.
Teacher tip
The first learning cycle demonstrates that more than one solid can be drawn based on the plan and elevations. This is to demonstrate to pupils that there is not always a definitive answer.
Licence
Lesson video
Loading...
Prior knowledge starter quiz
6 Questions
Q1.The of a solid is the view from above.

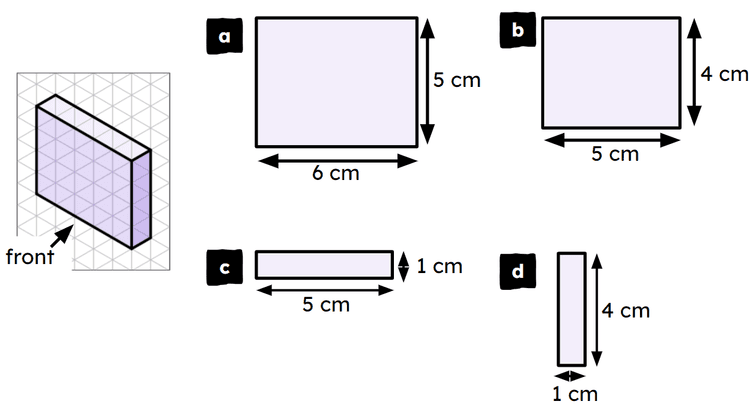

Q2.The diagram shows a cuboid drawn on centimetre isometric paper. Which figure shows the front elevation of the cuboid?
Q3.The diagram shows a cuboid drawn on centimetre isometric paper. Which figure shows the side elevation of the cuboid?
Q4.The diagram shows a solid constructed from cubes. Which figure shows the front elevation of the solid?

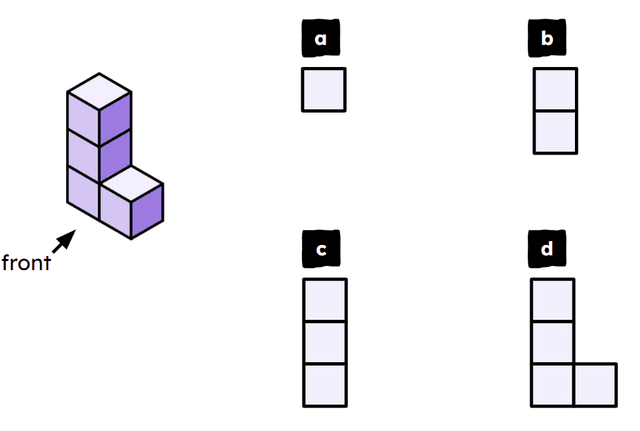

Q5.The diagram shows a solid constructed from cubes. Which figure shows the side elevation of the solid?
Q6.The diagram shows a solid constructed from cubes. Which figure shows the plan of the solid?
Assessment exit quiz
6 Questions
Q1.A solid is a shape that has __________ .

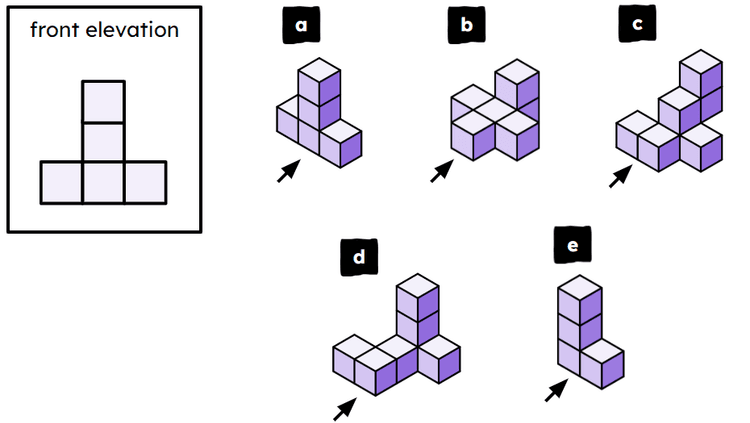

Q2.Which solids have the front elevation that is shown in the box?

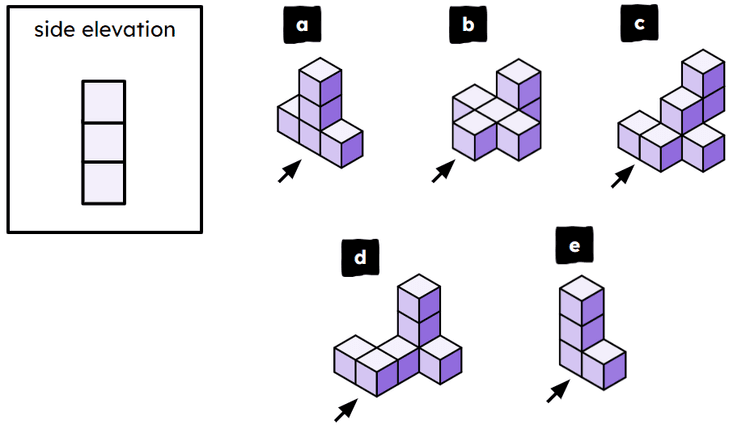

Q3.Which solids have the side elevation that is shown in the box?

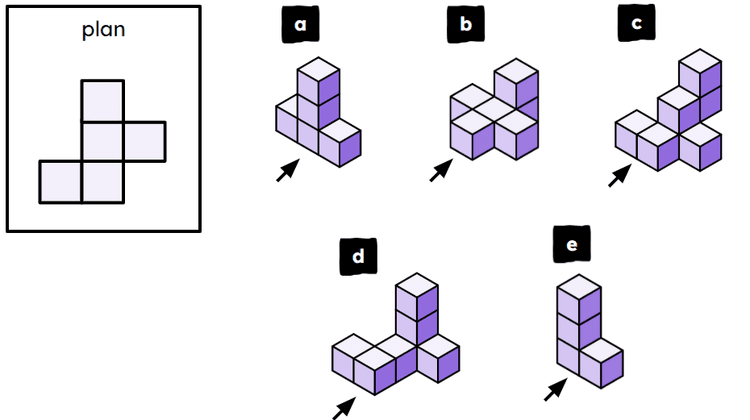

Q4.Which solid has the plan that is shown in the box?
Q5.Alex wants to draw a solid based on its plan and elevations. The plan is a circle with a point in the centre. The front and side elevations are both congruent triangles. Which shape could it be?

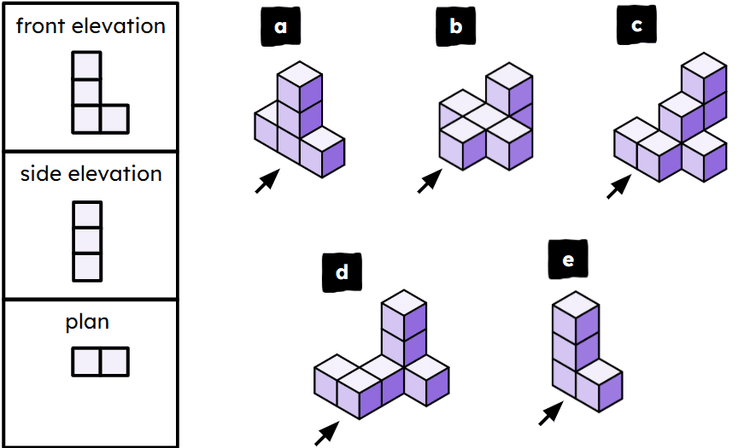

Q6.The diagram shows the plan and elevations for one of the five solids. Which solid is it?
