Make an accurate box frame
Lesson details
Learning outcome
I can make an accurate box frame.
Key learning points
- Sawing accurately will allow measurements to be accurate.
- Joining with a selection of techniques will strengthen the box frame.
- Card side panels can add strength to a box frame.
Keywords
Measure - determine the size of an object using a tool
Join - link or connect two or more things together
Strengthen - to make stronger
Common misconception
A common mistake is inaccurate measuring which means the box frame will not be square.
It is important to measure accurately to make sure the box frame is square.
Teacher tip
If pupils require further instruction on safe sawing techniques, please refer to lesson 5 in this unit. All pupils should measure their own box frames before cutting rectangular panels as there will be differences in the frame dimensions from earlier accuracy in measuring and cutting.
Equipment
See additional materials document for a list of equipment and resources needed for this lesson.
Licence
Lesson video
Loading...
Prior knowledge starter quiz
6 Questions
Q1.What does the prefix tri- mean in the word triangle?
Q2.Why is wood NOT a suitable material for a saucepan?
Q3.Which of these is NOT a suitable way to join wood?
Q4.How many faces does a cuboid have?
Q5.How many vertices do cuboids have?
Q6.There are 10 millimetres (mm) in one centimetre (cm). How many mm are there in 8.7 cm?
Assessment exit quiz
6 Questions

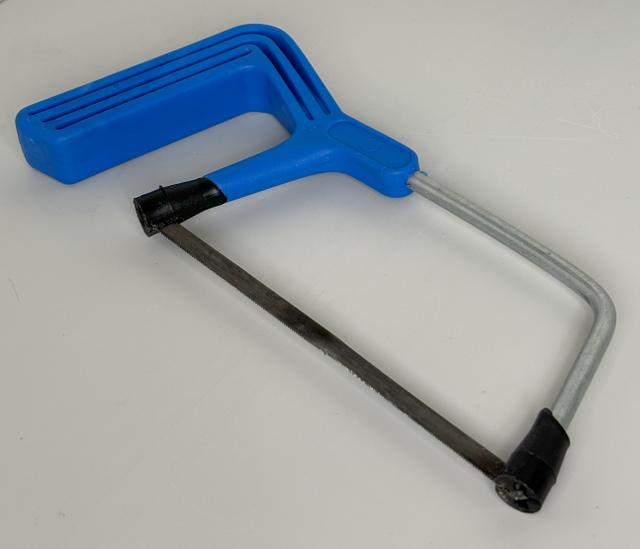

Q1.A hacksaw is used to __________ wood.
Q2.Which part of a hacksaw has 'teeth'?

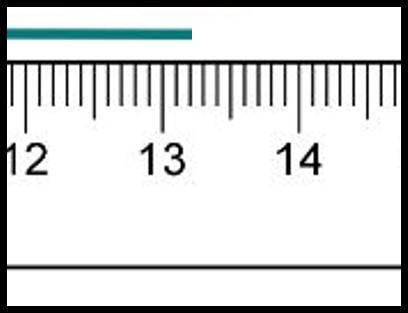

Q3.What is the correct length of this line in mm?
Q4.Using triangles to strengthen joints or structures is known as what?

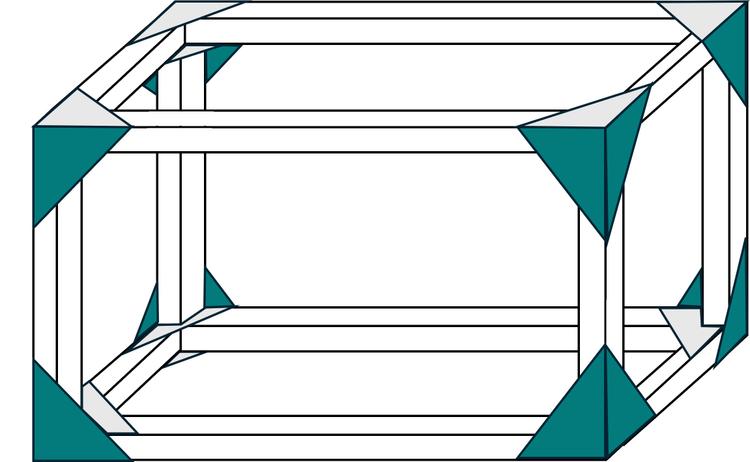

Q5.How many corner sections does a box frame have?

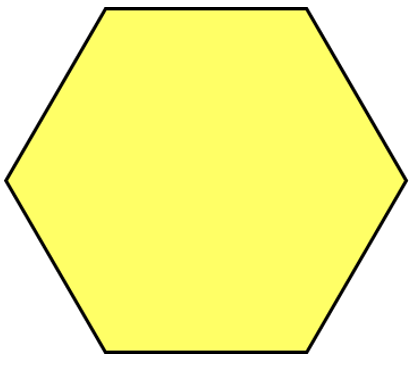

Q6.Which of these shapes would be the most effective as a strengthening panel for a box frame?
