Ratios in line segments on coordinate axes

I can use ratios to divide a line segment and find the coordinates of a point on the line.

Download all resources

Share activities with pupils

These resources will be removed by end of Summer Term 2025.

Switch to our new teaching resources now - designed by teachers and leading subject experts, and tested in classrooms.

View new resources

Slide deck

Download slide deck

Skip slide deck

Lesson details

Key learning points

Your knowledge of ratios can be applied here.
The ratio can be applied to both the x and y distances.
Your knowledge of similar triangles explains why this works for diagonal lines.

Keywords

Midpoint - The midpoint of a line segment is halfway between the two end points.

Common misconception

P is a point such that AP : PB is in the ratio of 1 : 3 means that point P is a third of the distance of AB from A.

There are 4 equal parts in total, meaning that point P is a quarter of the distance of AB from A.

Calculating the midpoint is shown via the ratio method so that pupils can then build on this understanding for when the line is split into different ratios. This is in preparation for vectors which are introduced in Year 11.

Teacher tip

Licence

This content is © Oak National Academy Limited (2024), licensed on Open Government Licence version 3.0 except where otherwise stated. See Oak's terms & conditions (Collection 2).

Lesson video

Skip lesson video

Worksheet

Download worksheet

Skip worksheet

Starter quiz

Download starter quiz

6 Questions

Q1.

Which of the below are ratios?

Correct answer: $$2:3$$

Correct answer: $$1:2.5$$

$$2.5$$

$$2\over5$$

Correct answer: $${1\over2}:{2\over5}$$

Q2.

Match each ratio to an equivalent ratio.

Correct Answer:1 : 2,12 : 24

12 : 24

Correct Answer:2 : 1,12 : 6

12 : 6

Correct Answer:1 : 3,8 : 24

8 : 24

Correct Answer:2 : 3,12 : 18

12 : 18

Correct Answer:3 : 2,18 : 12

18 : 12

Q3.

Two Oak pupils share 30 sweets in the ratio of 1 : 1. What proportion of the sweets does the second pupil receive?

One whole

$$1\over1$$

Correct answer: $$1\over2$$

$$1\over3$$

Q4.

£280 is divided in the ratio of 1 : 4. Which calculation can be used to find the larger share?

$$280\div5$$

Correct answer: $$(280\div5)\times4$$

$${1\over5}\times280$$

Correct answer: $${4\over5}\times280$$

$$(280\div4)\times1$$

Q5.

8640 grams is divided in the ratio of 3 : 5. How much is in the smaller share?

1080 g

1728 g

Correct answer: 3240 g

5400 g

5184 g

Q6.

What number is exactly in the middle of -17 and 60?

Correct answer: 21.5

23.5

38.5

Exit quiz

Download exit quiz

6 Questions

Q1.

Halfway between the two end points of a line segment is the ...

half point

median

Correct answer: midpoint

Q2.

Three points A, B and P are plotted. If AP : PB is in the ratio of 1 : 1 then P is the of AB.

Correct Answer: midpoint, mid point, mid-point

Q3.

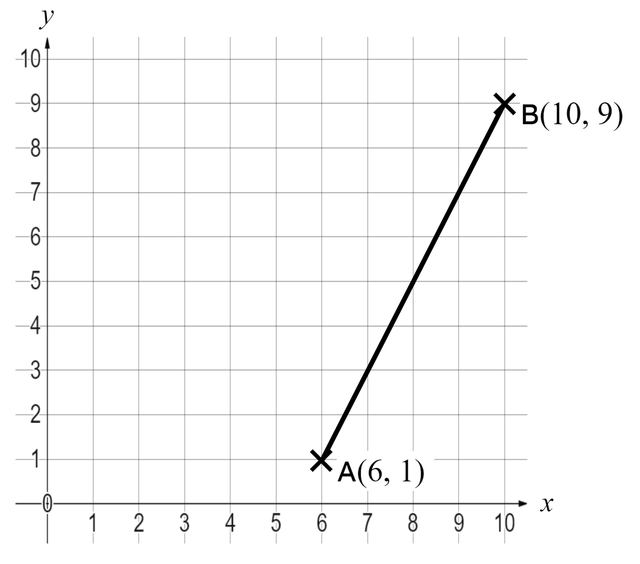

What is the midpoint of line segment AB?

(7, 3)

Correct answer: (8, 5)

(8.5, 6)

(9, 7)

Q4.

Find the coordinates of the point P when AP : PB is in the ratio 3 : 1.

(7, 3)

(8, 5)

(8.5, 6)

Correct answer: (9, 7)

Q5.

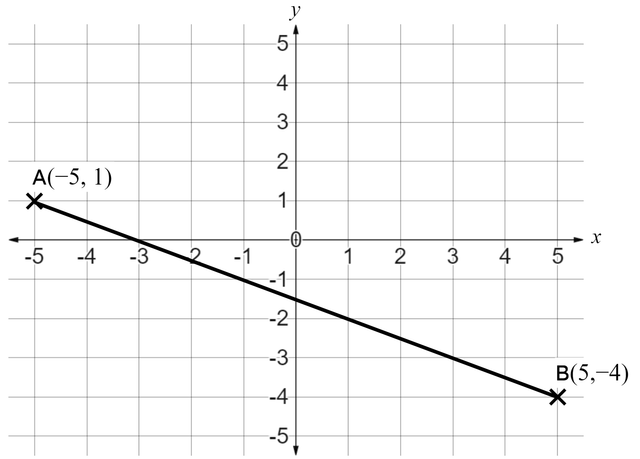

Find the coordinates of the point P when AP : PB is in the ratio 1 : 4.

Correct answer: (-3, 0)

(-1, -1)

(0, -1.5)

(1, -2)

(3, -3)

Q6.

Find the coordinates of the point P when AP : PB is in the ratio 3 : 2.

(-3, 0)

(-1, -1)

(0, -1.5)

Correct answer: (1, -2)

(3, -3)
