Electronic systems
Lesson details
Learning outcome
I can use electronic components to design and test electronic circuits.
Key learning points
- Voltage, current and resistance are the key concepts when designing electronic systems.
- Input, process and output components are used to construct electronic systems.
- CAD and breadboarding are ways of modelling an electronic system in order to test it.
- Printed circuit boards are used in electronic products.
Keywords
Ohm's law - the relationship between voltage, current and resistance
Breadboard - a device used to plug in electrical components and test circuits
Polarity - the directional flow of electrons from one pole to another
Resistance - the opposition to the flow of current
Common misconception
Components all work however they are positioned in a circuit.
Some components are polarised and only work if they are the correct way round.
Teacher tip
This lesson is a great opportunity to recap previous electronic circuit learning and build on that to develop more complex circuit designs.
Licence
except where otherwise stated. See Oak's terms & conditions (Collection 2).Lesson video
Loading...
Prior knowledge starter quiz
6 Questions
Q1.Match the terms with the correct definition.
the electromotive force
the flow of electrons
the opposition to the flow of current

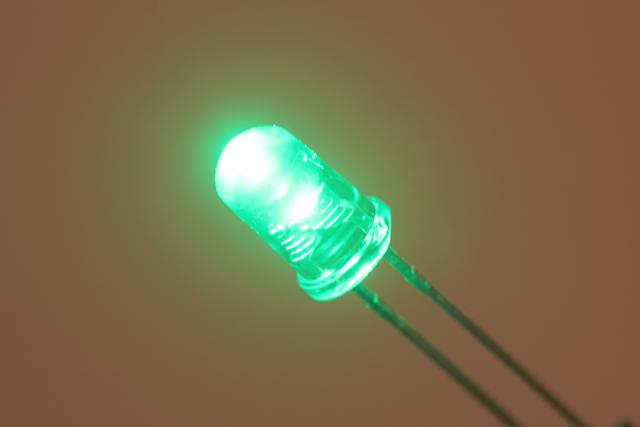

Q2.Identify this component.
Q3.What are the advantages of modelling circuit designs using CAD?
Q4.Resistors are measured in ohms but they do not have values printed on them. How can we distinguish the value?
Q5.Voltage is measured volts; what is current measured in?
Q6.When designing circuits, component symbols are used. Explain why.
Assessment exit quiz
6 Questions
Q1.Match the equation to the concept from Ohm's law.
I x R
V/R
V/I
Q2.'The directional flow of electrons from one pole to another' is a definition for?
Q3.Which of these components are polarised?
Q4.Which component responds to a small current flowing to the base which then enables a large current to flow between the collector to the emitter?
Q5.Match the circuit board material with its function.
conductor
insulator
Q6.When soldering, it is important to assess the potential hazards and minimise risk. What is this process called?
